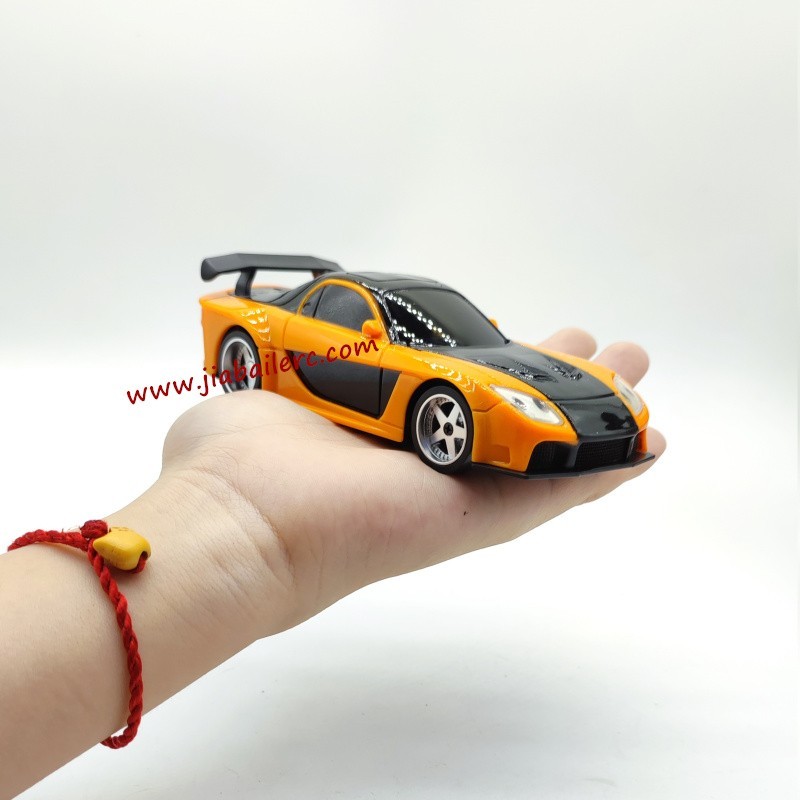

Jiabaile RC Car 4309 1/43 Mini 4WD Drift Car-Two Versions, The Upgraded Version Has A Gyroscope

Mini Car Model

Full-scale four-wheel drive - small-scale four-wheel drive structure

Upgraded version with gyroscope

Product description:

• 1:43 series drift car, parent-child interactive mini car, suitable for indoor and outdoor track racing/mini desktop fun competition
• 1:43 scaled down, replica of classic car model, streamlined body + iconic headlights
• Proportional servo steering adjustment, gyroscope sensitivity adjustment, speed adjustment, full-proportional speed change + three-speed speed adjustment, forward/backward/turn one-button silky drift! 30 minutes of ultra-long battery life.
• Micro racing artifact, collection-level texture, unlock your new drift experience!
• Let you feel the classic car model of speed and passion-miniature version

Basic specifications of Jiabaile RC Car 4309 RC CAR:

• Product material: plastic
• Product scale: 1:43
• Product specifications: 11*4.5*3cm (this is the average scale of the 1/43 series, the size will be slightly different)
• Color box specifications: 18.5*16.5*11cm
• Single package weight (including color box): 0.4Kg
• Gross weight/net weight: 10/8.8kg
• Product battery: 3.7V 200mAh 15c discharge high rate lithium battery (built-in)
• Remote control battery: 4*"AAA" (not included)
• Charging: USB charging cable
• Motor: 615 hollow cup motor-3.7v 51000 rpm
• ESC: 2a integrated ESC bidirectional with brake
• Servo: 2g three-wire independent digital servo
• Drive mode: full-time four-wheel drive
• Remote control time: 30 min
• Charging time: 30min
• Remote control distance: 20 meters
• Maximum speed: 15km/h

Package includes:

• Remote controller*1
• Charging cable*1
• English manual*1
• Racing/drifting tires*4
• Roadblock barrels*8

JIABAILE 1/43 Drift Car 4309 What are the differences in configuration between the regular version and the upgraded version?

The remote control and circuit board are different. The upgraded version with gyroscope has a gyroscope on the circuit board.

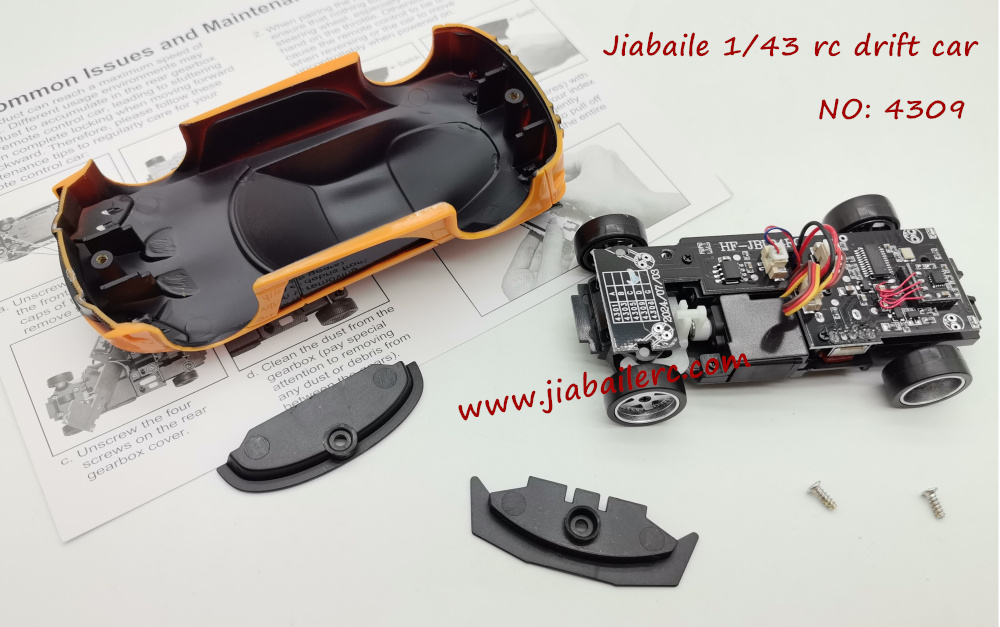

The following is a picture of the internal structure of the gyroscope board:

What are the functional differences between the regular version and the upgraded version with gyroscope of JIABAILE 4309 1/43 Drift Car?

1. The gyroscope version has almost the same steering as the real car, and the steering is more precise.

The direction can be achieved by turning the servo, which is better controlled and precise.

It can ensure that the car runs in a straight line without deviation.

2. The function of the gyroscope is to prevent excessive drifting, making it easier for novices to get started.

3. The car without gyroscope is more suitable for veteran players to choose because it can better exercise the control ability.

If you are looking for a Mini RC racing car, you can consider this Jiabaile 1:43 scale drift remote control car, which not only has a realistic car design, but also has high-speed driving and drifting functions, and a four-wheel drive system to ensure stable driving on various terrains. Let children experience the real driving feeling.

PS:

What should I pay attention to when using JIABAILE RC Drift Car 4309?

• Remote control battery: It is recommended to use ordinary 1.5V AAA alkaline batteries for the remote control.
• Speed ​​adjustment: There are speed gears on the remote control, please help your child adjust the appropriate speed according to actual needs
• Playground requirements: The ground is clean and smooth, and it is best to have a track map! (Dusty and dusty venues will easily get the gears stuck)

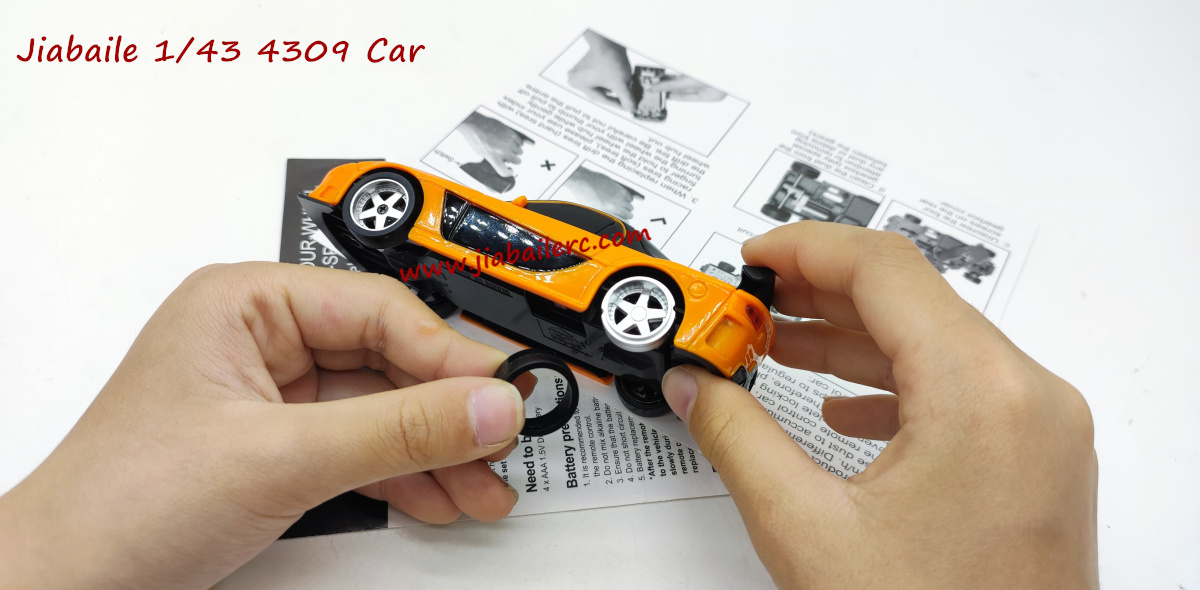

How to remove and install the wheel skin of Jiabaile 4309 RC Car?

When replacing the tire skin, you don't need to unscrew the entire wheel. Just pinch the wheel hub with one finger, slowly pry the wheel skin outwards and rotate the wheel hub, so it will be easy to take it out.

PS: The width of the front and rear tires of this car is different. Please pay attention to the difference. The front tire is small and the rear tire is wide.

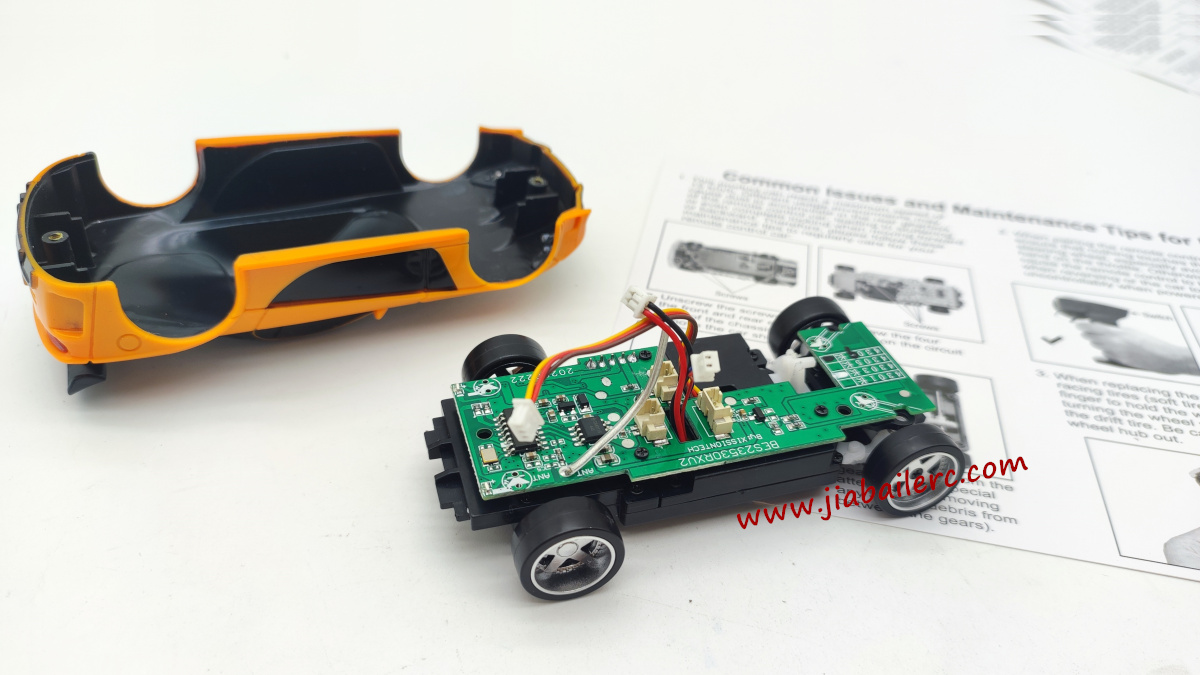

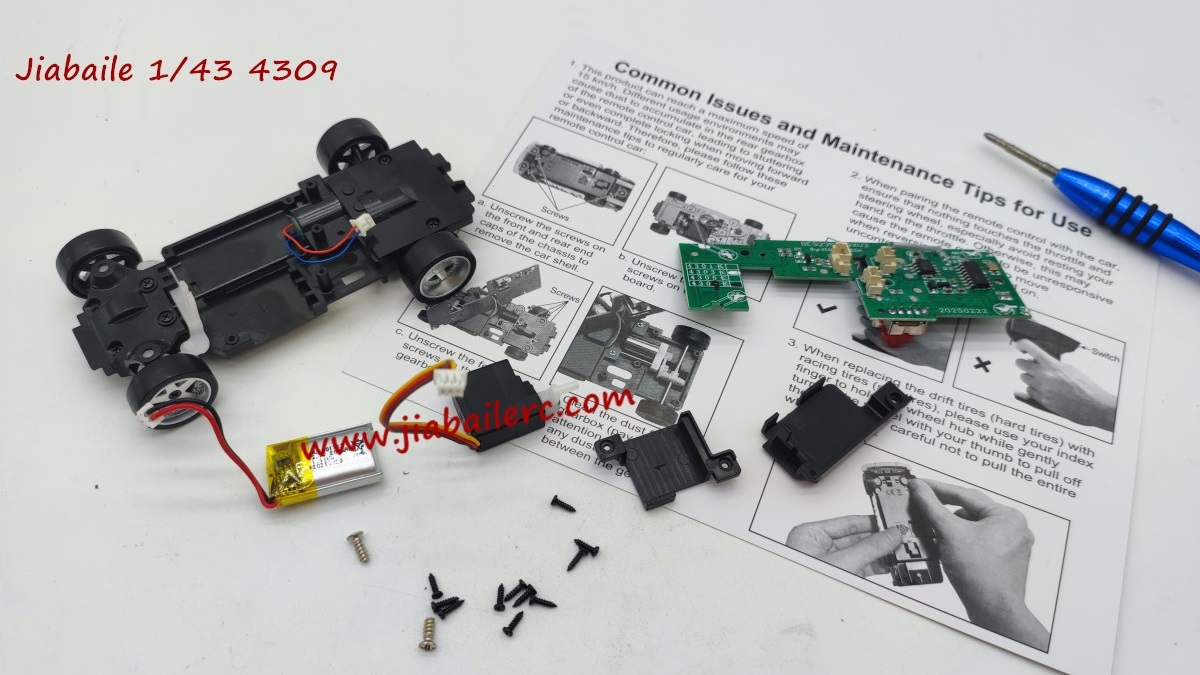

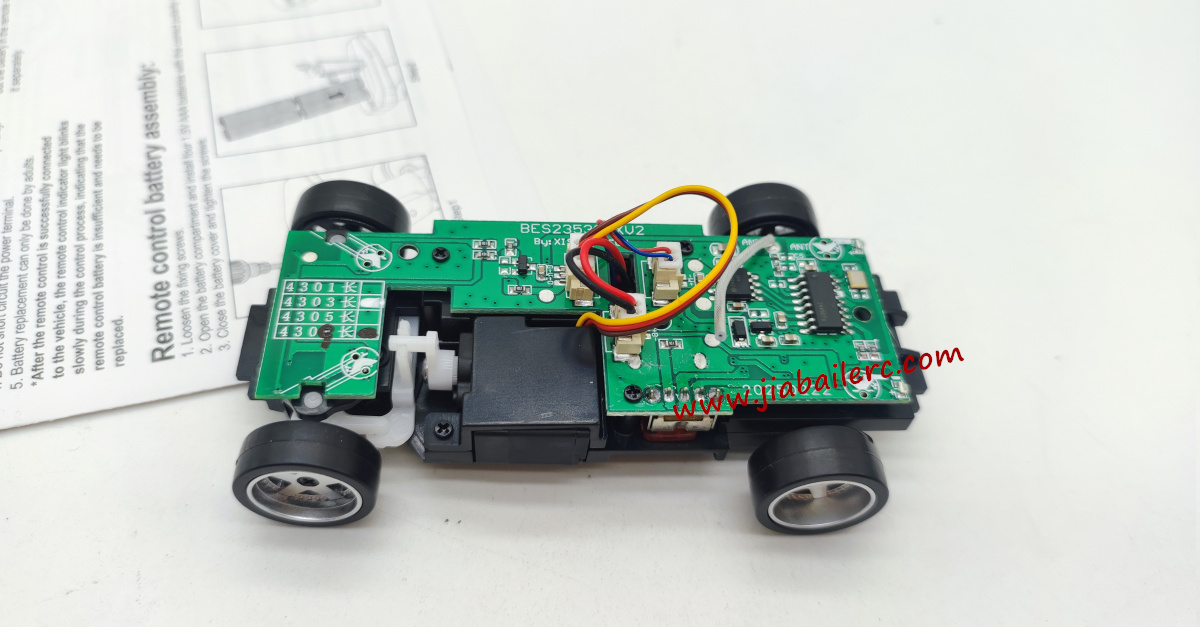

The following is the disassembly diagram of the internal components of Jiabaile rc drift car 4309 (Without gyro version):

 Buyer's Question:

How to choose a Jiabaile 1/43 drift car, which one is the best?

Answer: Jiabaile 1/43 drift cars are actually all based on the same chassis and have the same functions. However, different body shells and wheels result in different handling characteristics.

All models are customized based on the body shells and wheel width proportions of real-world models.

Different overall body width, chassis height, and tire width result in slight differences in track performance, steering, drift sensitivity, and throttle response, each with its own unique feel and characteristics. They all achieve a very high degree of similarity to real-world models, which is why they receive such high praise!

Therefore, you can first choose according to your preference for the car model, and if possible, buy multiple models to compare. You will find that they each have their own advantages!

More related pictures: Jiabaile 1/43 rc car night lighting effect picture
