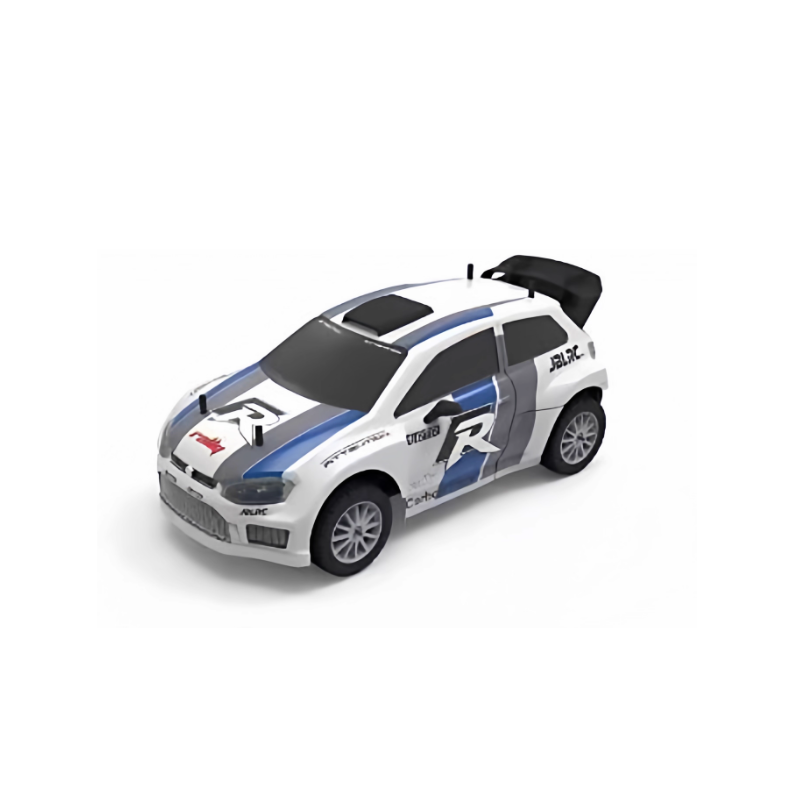

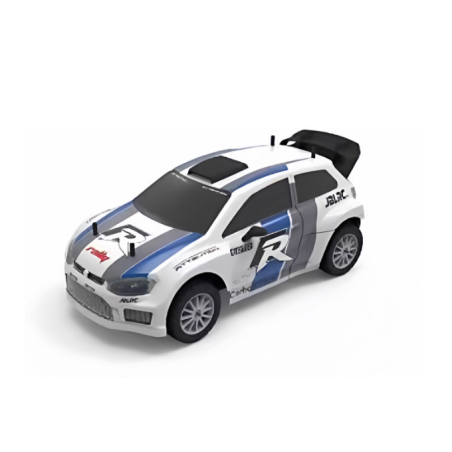

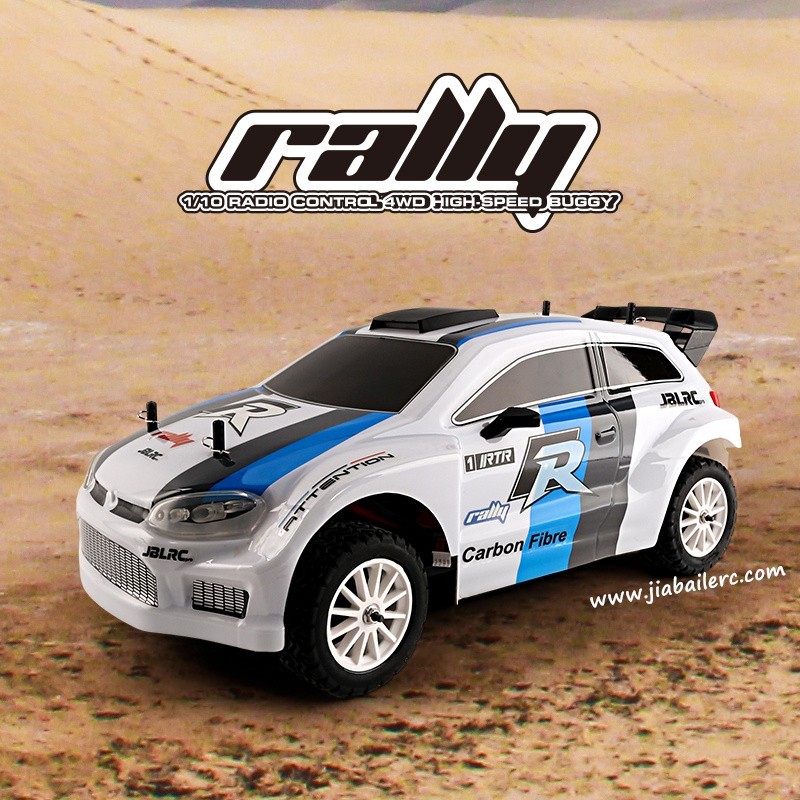

Jiabaile 1004 1/10 2.4G 4WD Rally High-Speed ​​Off-Road Vehicle

$279.99
Tax excluded

Product Details:

Brand Name: JIABAILE

Item Name: 1/10th Rally High-Speed ​​Off-Road Vehicle

Item Number: 1004

Dimensions: 48*25*20 cm (approximately)

Color Box Size: 60*31.5*21 cm (approximately)

Weight: 2040g

RC Type: Gun-type multi-function

Control Range: ≥300m

Maximum Speed: 70 km/h (using 3S)

Wheelbase: 292mm

Ground clearance: 30mm

Transmission ratio:1:8.5

Drive: 4WD

Frequency: 2.4GHz

Battery: 2S/3S Standard Short-Term Battery (not included)

Remote Control Battery: 4 AA-5 Batteries (not included)

Charger: (not included)

Packaging Details: Color Box, High-Speed ​​Buggy x 1, Remote Control x 1, Manual x 1, Sticker x 1, Accessories x 1, Tool x 1

Note:  This car does not include a body battery/charger/remote control battery. If you purchase this car, it means you have read this description.

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Jiabaile 1/10 RC Car Model

Jiabaile 1004 1/10 Professional Racing Car

Suitable for adults, children and other professional racing enthusiasts

Product introduction:

Jiabaile 1/10 high-end series 1004 rally car is a professional remote-controlled car with a strong sense of control.

The following are the vehicle's electronic specifications:

1. Motor: Chaoyuewang 3650 3800kV motor with a metal heat sink and a high-speed 3010 cooling fan. Vigorous use ensures proper motor operation.

2. ESC: 10b/160A brushless ESC, compatible with 2-3s lithium batteries. Adjustable motor operation mode, drag brake force, low battery protection, activation level, and maximum braking force.

3. Remote Control: Dumbo X5P version with built-in gyroscope. Multiple adjustable parameters, maximum control range of 350 meters, sensitive response, and strong anti-interference.

4. Servo: 10kg metal-gear servo with servo protection for collision-proof performance

Product Highlights

1. High-toughness nylon is used throughout the frame to ensure energy absorption during collisions.

2. 3mm aluminum alloy chassis effectively protects the car body structure

3. Huachang 12.9-grade high-strength screws are used throughout the vehicle for repeated assembly and disassembly without risk of thread stripping.

4. High-strength metal arm brackets allow for replacement of arm brackets and adjustable toe angle.

5. High-precision hydraulic shock absorbers with low resistance and smooth operation, featuring a dual oil seal design, eliminate the risk of oil leaks.

6. Adjustable linkages throughout the vehicle provide infinite adjustment of frame camber and toe angles.

7. Reserved frame geometry adjustment screw holes allow for custom adjustments for various driving styles.

8. Three differentials are equipped throughout the vehicle, each using high-hardness powder metallurgy gears that can withstand speeds of 120 km/h without snagging. The differential lock ratio can be adjusted by changing the damping fluid concentration, adapting to various road conditions.

9. All models are equipped with high-grip rubber tires, achieving higher vehicle limits. The large gear profile design offers exceptional wear resistance.

10. High-hardness metal couplings withstand a variety of aggressive maneuvers.

11. Front and rear carbon fiber butterfly gears offer ultimate lightweight and crash resistance.

12. The motor and reduction gears utilize a 32p large-module gear profile, providing a large load-bearing surface and exceptional durability. The motor mount is constructed of CNC-processed aluminum alloy with continuously adjustable gear pitch. The motor gears are compatible with 15t to 29t gears, satisfying the driver's needs for explosive and extreme speed tuning.

What batteries are compatible with the JBL Jiabaile 1004 Rally car, and what is the battery compartment size?

The Jiabaile 1004 comes standard with a 5000mAh 3S battery.

The plug type is XT60.

The car is compatible with 2S/3S lithium polymer batteries.

The battery compartment dimensions are approximately: 97*55*32 mm (length/width/height).
