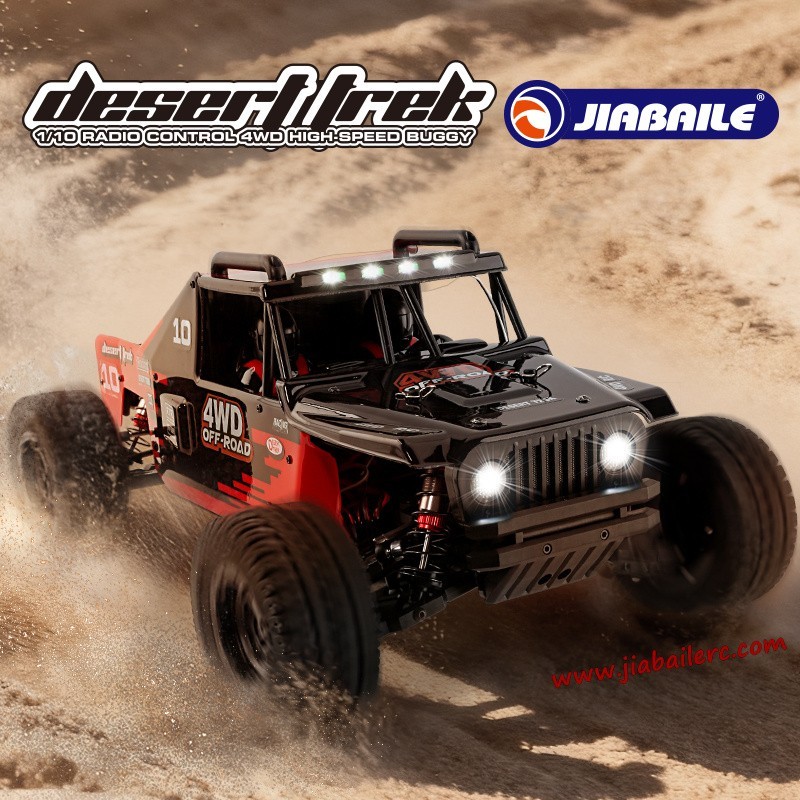

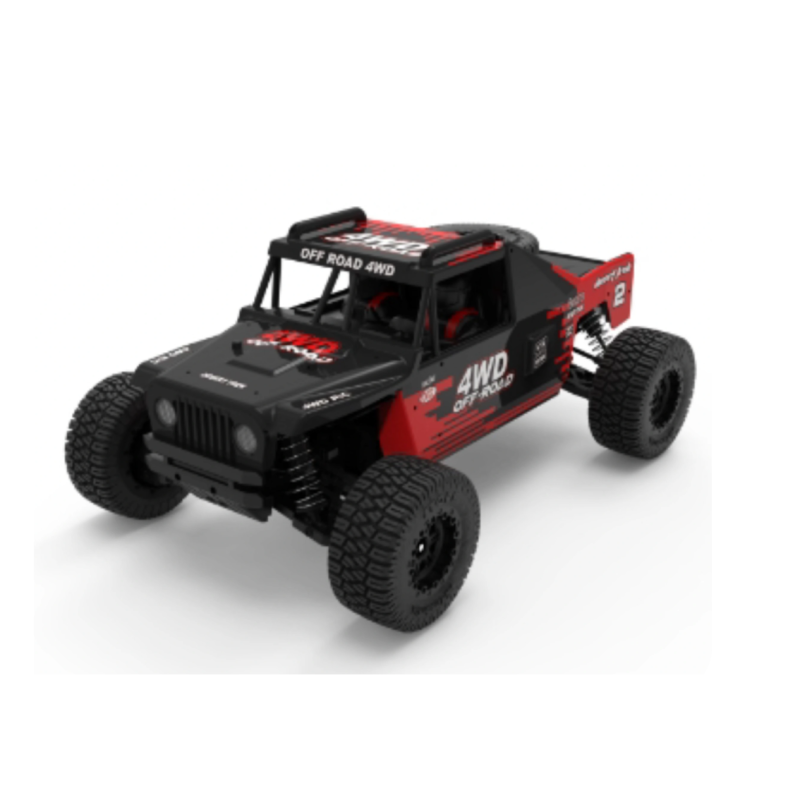

Jiabaile 1003 1/10 Brushless 2.4G 4WD Desert Truck, Top Speed ​​80 km/h

Jiabaile 1/10 RC Car Model

JBL 1003 1/10 Professional Racing Car

Suitable for adults, children and other professional racing enthusiasts

Product introduction:

The Jiabaile 1003 is the latest in Jiabaile's high-end 1/10 scale remote-controlled car series, an off-road truck model perfect for both off-roading and racing.

Its structural design incorporates the expertise of professional-grade chassis engineering, with a meticulously designed chassis providing maximum stability and rigidity.

Let's take a look at its electronic specifications:

1. Motor: 3650 3800kV brushless motor with a metal heat sink and a high-speed 3010 cooling fan. Rough use ensures proper motor operation.

2. ESC: Hobbywing 10B 160A brushless ESC, compatible with 2-3s lithium batteries. Adjustable motor operating mode, drag brake force, low-battery protection, activation level, and maximum braking force.

3. Remote Control: Dumbo X5P with built-in gyroscope. Multiple adjustable parameters, maximum control range of 350 meters, high response, and strong anti-interference.

4. Servo: 10kg metal gear servo with servo protection for crash resistance.

Structural Material Performance Analysis:

Material: The frame utilizes high-toughness nylon to prevent breakage during collisions.

Structural Design:

The chassis is meticulously designed for maximum stability and rigidity. Its low-slung design lowers the center of gravity, which is crucial for maintaining balance at high speeds. Adjustable linkages throughout the vehicle allow for infinitely variable frame camber and toe angles. Front and rear anti-roll bars are included. The frame adopts 3mm thick aluminum alloy rear chassis to effectively protect the body structure

Shock absorbers: High-precision hydraulic shock absorbers offer low resistance, smooth operation, and a double oil seal design to prevent oil leaks.

Shock mounts: Metal shock mounts provide enhanced frame support.

Wheels: High-grip rubber tires offer exceptional wear resistance.

Gears: The motor and reduction gears utilize a 32p large-module tooth profile, providing a large load-bearing surface and exceptional durability. The motor mount is constructed from CNC-processed aluminum alloy with infinitely adjustable tooth pitch. The motor gears are compatible with sizes from 15t to 29t, satisfying the user's needs for optimal vehicle performance and top speed.

Screws: Huachang 12.9-grade high-strength screws are used throughout the vehicle to prevent thread stripping caused by repeated assembly and disassembly.

Metal armrests: High-strength metal armrests support interchangeable armrests for adjustable toe angles. Pre-set frame geometry adjustment screw holes allow for custom adjustments for various driving styles. The vehicle is equipped with three differentials. The differential gears utilize high-hardness powder metallurgy gears and can withstand speeds of 120 km/h without sweeping. The differential lock ratio can be adjusted by changing the damping oil concentration, making it suitable for various road conditions.

What batteries are compatible with the JBL Jiabaile 1003 remote control car, and what is the battery compartment size?

The Jiabaile 1003 comes standard with a 5000mAh 3S battery.

The plug type is XT60.

The car is compatible with 2S/3S lithium polymer batteries.

The battery compartment dimensions are approximately: 97*55*32 mm (length/width/height).
