Jiabaile 1001 1/10 Brushless Radio Control 4WD High-Speed Buggy, Top Speed 70km/h

Jiabaile 1/10 RC Car Model

JBL 1001 1/10 Professional Racing Car

Suitable for adults, children and other professional racing enthusiasts

Product Details:

Brand Name: JIABAILE

Item Name: 1/10 High-Speed ​​Buggy

Item Number: 1001

Dimensions: 42*25*15 CM (about)

Color Box Size: 49.5*27.5*15.5 CM (about)

Weight (excluding battery): 1.85kg

RC Type: Full-Proportional Synchronous Control System (Gun Control)

Control Range: ≥300m

Maximum Speed: 70 km/h (using 3S)，50 km/h (using 2S)

Wheelbase: 292mm

Ground clearance: 30mm

Transmission ratio:1:8.5

Drive: 4WD

Frequency: 2.4GHz

Battery: 3S 11.4V 5600MAH Or 2S 7.6V 5600MAH (Not included)

Remote Control Battery: 4 AA-5 Batteries (Not included)

Charger: （Not included)

Packaging Details: Color Box, High-Speed ​​Buggy x 1, Remote Control x 1, Manual x 1, Sticker x 1, Accessories x 1, Tool x 1

Note:   This car does not include a body battery/charger/remote control battery. If you purchase this car, it means you have read this description.

Jiabaile 1001 remote control car performance and features:

The Jiabaile 1001 1/10 scale remote-controlled four-wheel drive 2.4G high-speed off-road vehicle features a sturdy body structure, wear-resistant wheels, fine details, and superb control. Whether you are an experienced amateur or a professional racer, this off-road vehicle can bring you an unparalleled experience.

Superior quality is evident throughout.

Material: High-quality plastic alloy achieves the perfect balance between strength and weight. High-toughness nylon is used throughout the frame to ensure energy absorption during collisions.

Structural Design: The chassis is meticulously engineered for maximum stability and rigidity. Its low-slung design lowers the center of gravity, which is crucial for maintaining balance at high speeds.

Shock Absorbers: High-precision hydraulic shock absorbers with low drag and smooth operation, featuring a double oil seal design to prevent oil leaks.

Wheels: High-grip rubber tires provide longer mileage. Large tooth profile design provides enhanced wear resistance.

Gears: The motor and reduction gears utilize a 32p large-module tooth profile, providing a large load-bearing surface and exceptional durability. The motor mount is constructed from aluminum alloy using CNC technology, offering infinitely adjustable tooth pitch. The motor gears are compatible with 15t-29t, satisfying the player's needs for optimal vehicle burst and top speed.

Electronic Configuration:

1. Motor: 3650-3800kV brushless motor with metal heat sink and high-speed 3010 cooling fan. Powerful operation ensures proper motor operation.

2. ESC: Hobbywing 10bl60A brushless ESC supports 2-3s lithium batteries, with adjustable motor operating modes, drag brake force, low-battery protection, start level, and maximum braking force.

3. Remote Control: Dumbo X5P with built-in gyroscope. Multiple adjustable parameters, maximum range of 350 meters, sensitive response, and strong anti-interference.

4. Servo: 10kg metal-gear servo with servo protection, resistant to collisions.

Details:

1. Huachang 12.9-grade high-strength screws are used throughout the vehicle, ensuring no thread slippage during repeated assembly and disassembly.

2. High-strength metal arm brackets allow for interchangeable arm brackets and adjustable toe angles.

3. Adjustable linkages throughout the vehicle provide infinitely adjustable frame camber and toe angles.

3. Reserved frame geometry adjustment screw holes allow for custom adjustments for various driving styles.

4. Three differentials are equipped. The differential gears are made of high-hardness powder metallurgy and can withstand speeds of 120 km/h without snagging. The differential lock ratio can be adjusted by changing the damping oil concentration to suit various road conditions.

What batteries are compatible with the Jiabaile 1001 remote control car, and what is the battery compartment size?

The Jiabaile 1001 comes standard with a 5000mAh 3S battery.

The plug type is XT60.

The car is compatible with 2S/3S lithium polymer batteries.

The battery compartment measures 97x49x34 mm and is compatible with standard 2S/3S short batteries. It is recommended to purchase batteries compatible with Jiabaile.

3S 5600mAh Battery

2S 5600mAh Battery

Differences between the two batteries for the Jiabaile 1001 RC car, 2S and 3S:

Speed ​​(km/h)

70km/h（3S）

50km/h（2S）

Looking for spare parts for the jiabaile 1001 rc cars?  Check it here:

Jiabaile 1001 RC Car Spare Parts

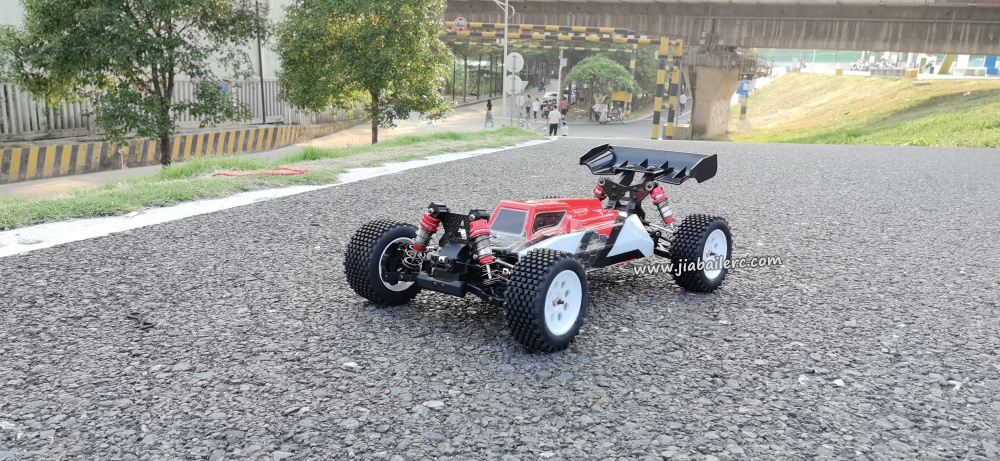

Jbl jiabaile 1001 brushless high speed rc car
